Continuing with the Bed Disassembly

Saturday, January 28, 2006  -  Well, after several weeks of not being able to get in any shop time, I finally had another day today to get some more work done. I didn't know exactly what I was going to do...but I figured I'd get back to work on the '67 box, getting it stripped down...which is what I spent the whole day on.

I've been having a lot of second-thoughts and doubts over the past few weeks about this portion of the project, not really sure if I wanted to put myself through all the work that repairing this box would require. Several times I've told myself to just scrap everything and keep my eyes open for a good box to use instead, but I finally decided that I'd do both. That is, I'd continue with the bed repair as planned, but still continue to search for another box. However, I'm being realistic enough to know that the chances of my finding a replacement that's in my budget and in my immediate vicinity are next to none, so I'm not going to hold my breath.

So....I got started. While I was originally intending to just replace the bed sides, using the LWB '68 F100 as a donor, I decided that the interior box sides also needed replacement. The back sides of these panels were very pitted, and were rusted through in places. After some thought, I decided to take them out in one fell swoop. I started off by using an air chisel to break the spot welds holding the bedside to the end cap and the bed front, and then continued all the way down the length of the bed, using the air chisel to break the spot welds holding the lower bed side to the inner bed wall. Once the lower bed side was removed, I then completely cut out the inner bed wall and fenderwell (Fig. 2). Once those were removed, I then removed the wheelwell from the bed wall and discarded the wall....the fenderwells will be repaired and reused. You can see in Fig. 2 you can see the fenderwell still connected to the bed wall...they were separated right after taking that picture.

At this point I decided to go ahead and drill out the 16-18 spotwelds on each side of the bed front, which connects it to the sides and separate them completely. Not only will it make the repairs a little easier in the long run, since I can lay the pieces down flat for welding and repairs, but I'll be able to carry each bed side and the front panel into my sandblast booth beforehand to get them each 100% cleaned up.

In Fig. 5 you can see the extent of the rust damage on the back sides of the inner bed wall. I've been trying to figure out what to do about this...whether I should just cut it out or not...and I'm glad I chose that route. This will actually be the easiest part of this job, since it's just flat steel. When cutting it out I left about a half-inch lip around the perimeter to weld the patch panel to. I have some 1/4" diamond-plate steel (straight steel, not stainless) that I'm seriously thinking about using for this, since not only will it add a lot of rigidity to the bed sides, but it'll add a little pizzaz too! I will probably also use the diamond plate to replace the four flat sections of steel in each of the bed corners.

The right-side fenderwell is in pretty good shape and will need nothing more than to be cleaned up and reattached. However, the left fenderwell has some major cancer right along where it attaches to the bed floor (Fig. 6). Fortunately this area is also flat steel, so it'll be a fairly simple task to cut this area out and weld in a patch panel.

At this point, with the '67 bed completely disassembled (well, as far as needed, anyway), I decided to get the '72 bed floor removed from the chassis, since it was still bolted down. This will probably be the first major bed component that'll see some time in the sandblast booth. Considering how rusty the whole underside of the truck was, it's amazing that the bed floor has no major rust, just a lot of surface rust that'll clean right up (Fig. 7). The one piece with cancer in it is the front floor support (Fig. 8), which will be removed by drilling out all the spotwelds and replacing it with a floor support from the '67 bed.

So that's basically where I'm at at the moment. I was hoping to get started cutting the donor side panels from the '68 parts truck today, before it was raining pretty good all day long, so that will have to wait for another day. I'd imagine I'm going to be looking at at least another day's worth of work carefully removing those anyway.

So...right now I've got four major bed components...the bed floor from the '72, the two bed sides from the '67, and the '67s front panel. I will be spending some time getting as much paint removed and rust cleaned up with a wire wheel before taking them into the sandblast booth, since I've found that doing so really speeds up the sandblasting. Once everything is completely sandblasted clean, then I'll get started on the reassembly.

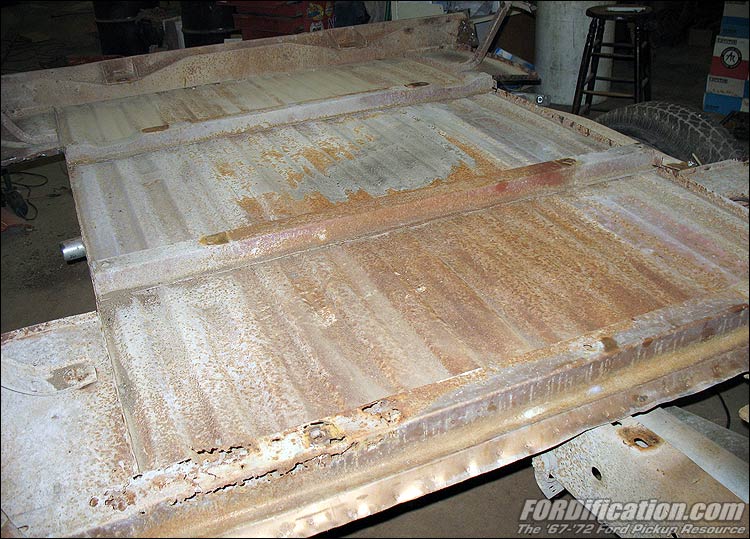

Fig. 7 - Here's a view of the bed floor after disconnecting it from the chassis and flipping it over. Other than the cancer in the front support, it's in pretty good condition.

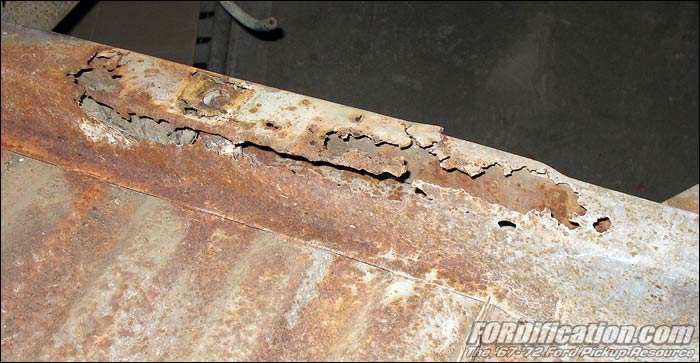

Fig. 8 - The front floor support on the '72 bed is the one thing needing repair. The '67 support is perfect so it'll be used here.

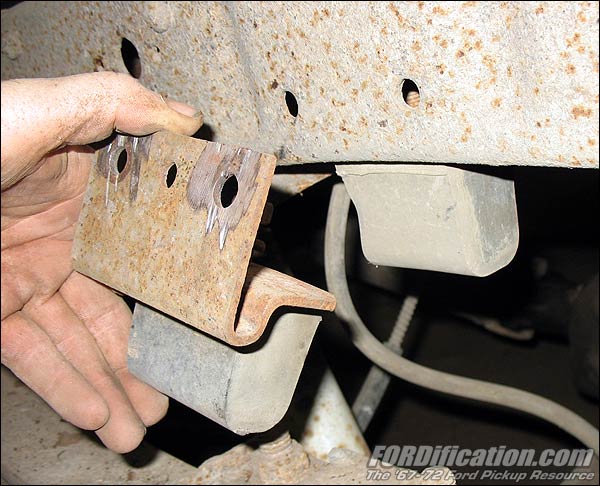

Fig. 9 - This is completely unrelated...but here's a comparison of the bumper mounted above the rearend. I'm holding a '67 assembly which uses a mounting bracket that the '72 doesn't have.

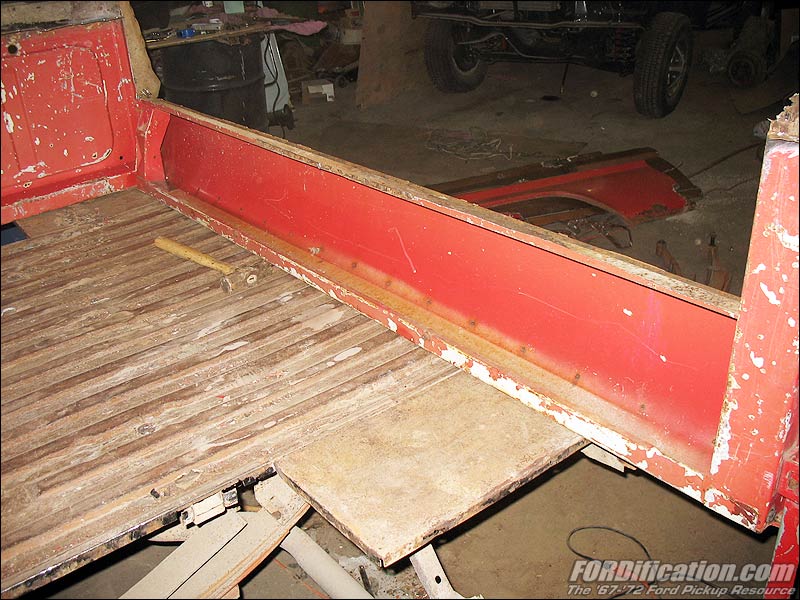

Fig. 1 - Here's the driver's-side bedside and inner bed wall removed. You can see the removed bedside on the floor.

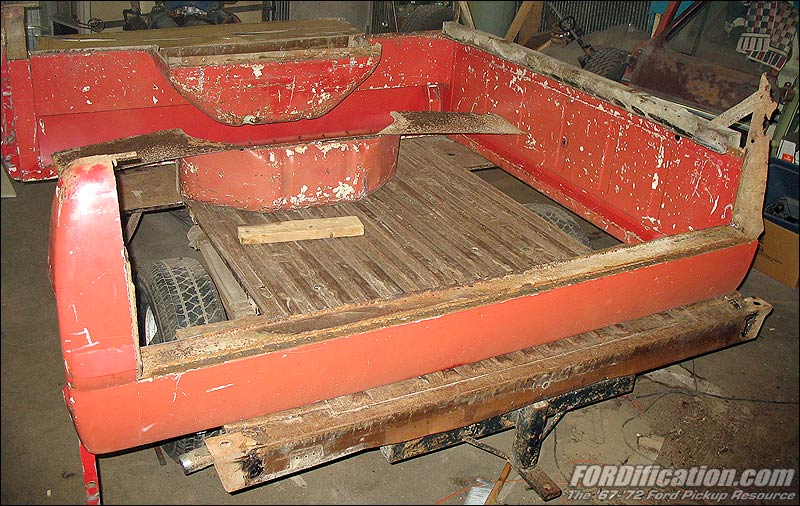

Fig. 2 - Here's another view. You can see the inner bed wall and wheelwell was cut out and set aside. I left about 1/2" of edge to allow myself something to weld the replacement metal to.

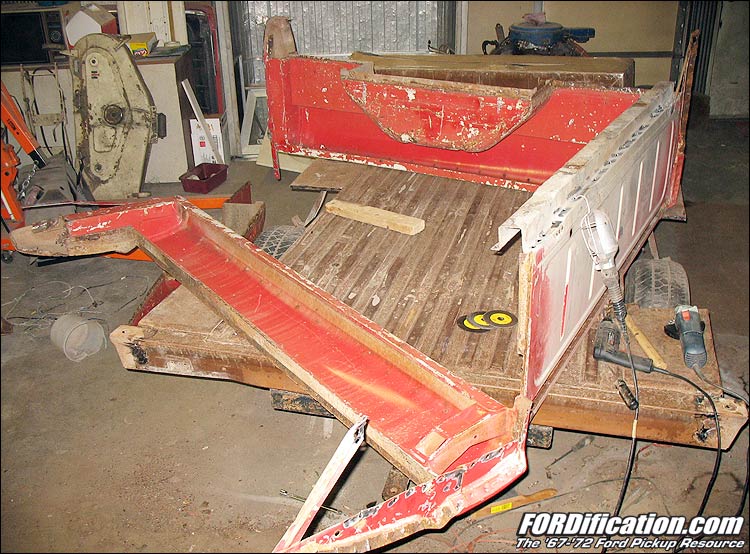

Fig. 3 Here's a view of the left-side separated from the front panel.

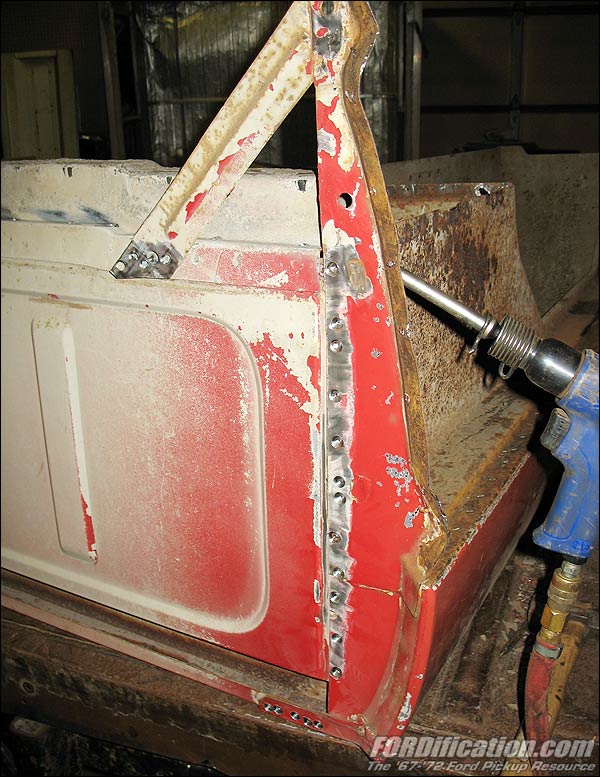

Fig. 4 - Getting started on separating the bed front from the right side, by drilling out the spotwelds.

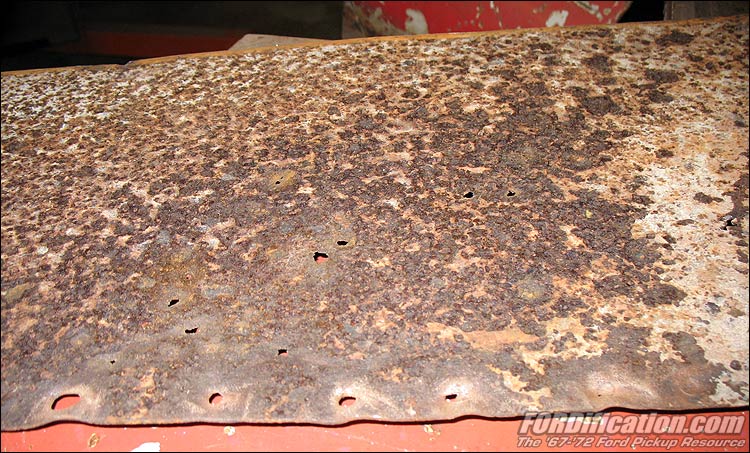

Fig. 5 - The rust on the back side of the inner bed wall is obvious in this photo. The metal is very thin in spots and completely rusted through in a few others.

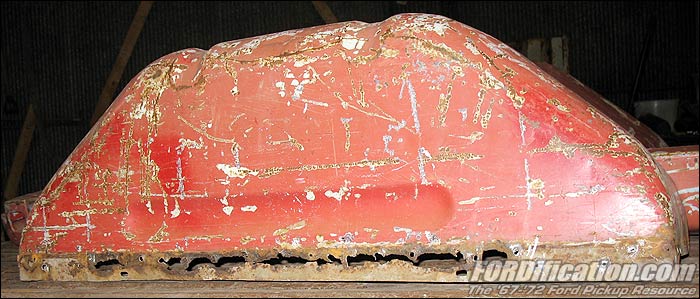

Fig. 6 - The rusty left inner fenderwell

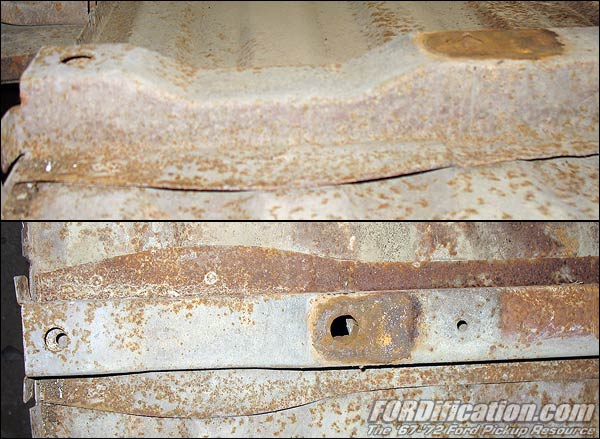

I decided to post these two pictures here just for reference. I noticed when disassembling these beds that the #3 floor support (of 4, counting from the front) is notched on the '72, while it isn't on the '67 bed. Also, the mounting flange on the '72 support is flared out in this area. The notch is apparently for clearance of add-on booster spring hardware, since it's located right above the spring pack. I'll have to do some research to see when Ford started incorporating this.
Fig. 10 - '72 bed support

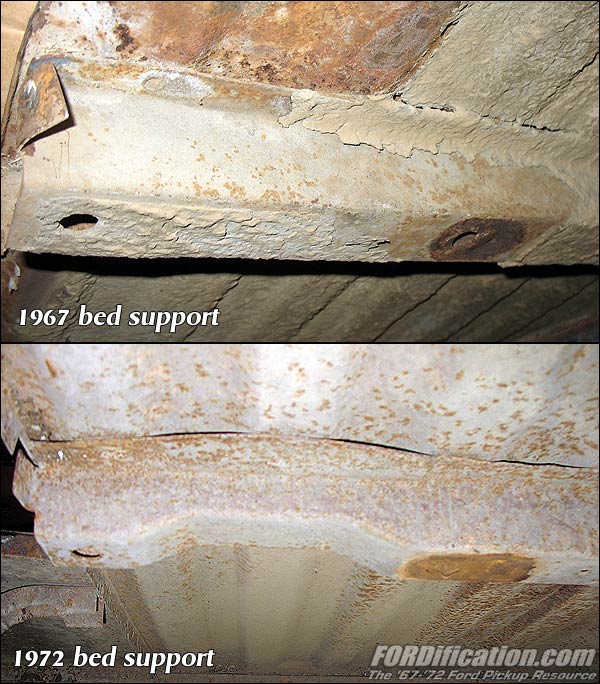

Fig. 11 - '67 vs. '72 bed support
