Air Conditioning Unit, Factory Integral



NOTE: Items listed below pertain only to the '68-'72 factory integral A/C unit (as shown below), and the listing does not include any numbers for dealer-installed 'hang-on' type A/C setups. Items listed might have other applications (other than '67-'72 F100/350 models) that are not included here.

 Body Codes:
 Cab Parts

› 81 - Conventional cab
 › 84 - Cowl
 › 85 - Cowl/Windshield
 Behind Cab Parts

› 83 - Flareside box
 › 86 - Platform/Rack
 › 99 - Styleside box
All part numbers and specifications are as reported in the 1964-1972 Ford Truck Master Parts Catalog 1975 Final Issue unless otherwise noted.

(CLICK HERE to view listings for engine compartment components for the integral A/C setup.)


Air Conditioning Parts - Passenger Compartment
1968-1972 F100/350 w/Integral A/C

Application Part Number Notes
13466 - Bulb, Lamp
  See Miniature Bulb Application Chart
18K264 - Bracket, Heater Core Support
  '68-'72 F100/350 w/ integral A/C C8TZ-18K264-A
18A361 - Door Assembly, Air Damper
  '68-'72 F100/350 w/ integral A/C C8TZ-18A361-A Heater core
C8TZ-18A361-B Evaporator core
18C434 - Bracket, Air Conditioner Door Control Cable
  '68-'72 F100/350 w/ integral A/C C8TZ-18C434-B Blend door
  '68-'72 F100/350 w/ integral A/C C8TZ-18C434-A Defroster Door
18C466 - Shaft Assembly, Air Conditioner Air Damper Door
  '68-'72 F100/350 w/ integral A/C C8TZ-18C466-A
  372927-S2 Nut - 3/16" Spring steel
18472 - Hose, Heater Water
  '68-'72 F100/350 w/ integral A/C (see note below) C8TZ-18472-D Formed inlet - 14" long
  NOTE: Group 18472 is Ford's basic number for all heater hoses. The MPC doesn't show an individual listing for this preformed hose used on the '68-'72 F100/350 AC/heater unit. Therefore, the listing above comes from the 1972 Ford Truck Parts Catalog, which is correct for this specific piece and should be correct for all '68-'72 F100/350 w/ integral A/C. The January 1980 Ford O.S.I. Catalog lists this number as 'Not Replaced', meaning it should still be good. Also see Group 18573.

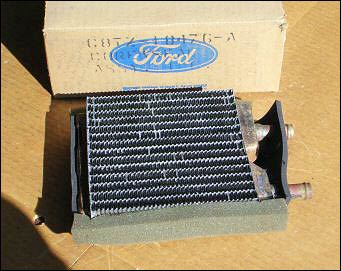

18476 - Core Assembly, Heater
'68-'72 F100/350 w/ integral A/C C8TZ-18476-A
18A482
  Text listing not found in MPC
18518 - Cable Assembly, Fresh Air Heater Temperature
Also refer to Groups 18548 and 19988
  '68 F100/350 w/ integral A/C C7TA-18518-E 31.00" long - cut to size from C1TT-18518-A
'68-'72 F100/350 w/ integral A/C C8TZ-18518-A 28.50" long - used with fresh air heater
  '68-'72 F100/350 w/ integral A/C C8TZ-18518-C 37.38" long
  '67-'69 F-N-NT-T100/1000 C7TZ-18518-B 33.25" long
  Related link: See Factory A/C Control Cable Hookups
18519 - Knob Assembly
Also refer to Groups 17513 and 18534
'68-'72 F100/350 w/heater and/or integral A/C C8GY-18519-A
18527 - Motor Assembly, Heater Blower
'68-'72 F100/350 w/ integral A/C C8TZ-18527-A
    34079-S7 Nut, motor to mounting plate or bracket - No. 8-32
    34903-S8 Lockwasher - No. 10
    44713-S8 Flat washer - No. 10
18541 - Wire and Bulb Socket
  Supplied only in 19980 Control Assembly

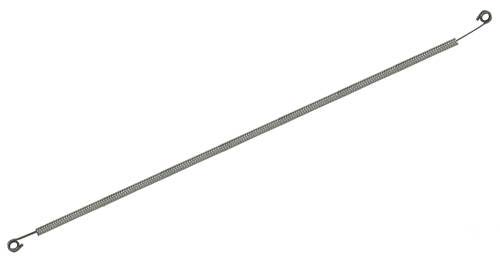

18548 - Cable Assembly, Defroster Air
'68-'72 F100/350 exc. w/integral A/C C8TZ-18548-A Defroster - 21.88" long
  '68-'72 F100/350 w/ integral A/C C8TZ-18548-B Defroster

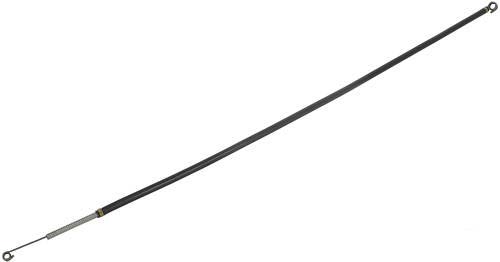

18552 - Cable Assembly, Heater Air
'68-'72 F100/350 w/ integral A/C C8TZ-18552-C Approx. 29.50" long - air conditioner
Changed from C8TZ-18552-B
18A568 - Connector, Heater Inlet Hose
  '68-'72 F100/350 w/ integral A/C C8TZ-18A568-B Connector and retainer
Replaces C8TZ-18A568-A

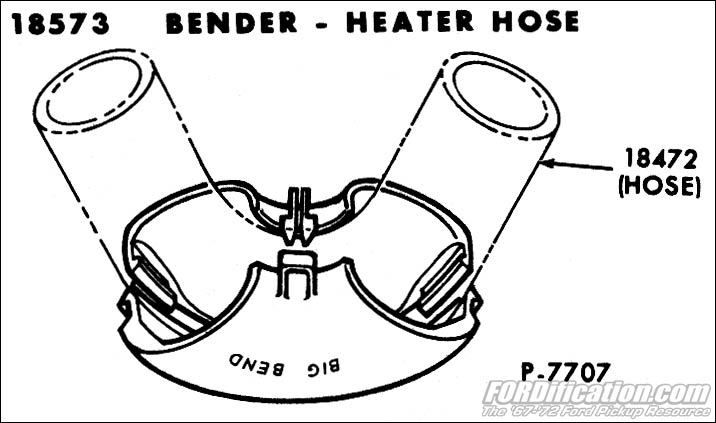

18573 - Bender, Heater Hose
'64-'72 All D1AZ-18573-A Use with 5/8" I.D. hose - refer to Group 18472
Replaces C9AZ-18573-A
18A636 - Nozzle and Connector Assembly, Windshield Defroster
  '67 F100/350 w/deluxe heater
'68-'72 F100/350
C7TZ-18A636-A (Included in this listing to show difference in part numbers between trucks with A/C vs. non-A/C)
  '68-'72 F100/350 w/ integral A/C C8TZ-18A636-A
18754 / 18755 - Housing, Air Conditioner Blower Motor
  '68-'72 F100/350 w/ integral A/C C8TZ-18754-A Inner
C8TZ-18755-A Outer
18C855
  Typographical error in exploded-view schematic. Should be 19C855 (see Group 19C853 below)
19469 - Door, Blender Air
  '68-'72 F100/350 w/ integral A/C C8TZ-19469-A

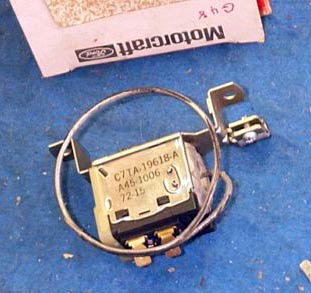

19618 - Thermostat, Air Conditioner Evaporator Temperature Control
'68-'72 F100/350 w/ integral A/C C8TZ-19618-A
19706 - Resistor Assembly, Air Conditioner Blower Motor
  '68-'72 F100/350 w/ integral A/C C8TZ-19706-B
19C741 - Bracket, Air Conditioner Evaporator Thermostat
  '68-'72 F100/350 w/ integral A/C C8TZ-19C741-A
19752 - Valve Assembly, Air Conditioner Compressor Low Pressure
Also refer to Section 197
  '68-'69 F100/350 w/ integral A/C C8ZZ-19752-A
  '70-'72 F100/350 w/ integral A/C D0AZ-19752-A
19A759 - Door Assembly, Air Conditioner Air Outlet
  '68-'72 F100/350 w/ integral A/C C8TZ-19A759-A
19B769 - Knob, Air Conditioner Air Outlet Door Control
  '68-'72 F100/350 w/ integral A/C C8TZ-19B769-A
    55928-S2 Screw - No. 8-18 x 3/4"
19804 - Plate, Air Conditioner Evaporator Case Mounting
  '68-'72 F100/350 w/ integral A/C C8TZ-19804-B 11" x 12-3/4"
  (Exploded-view diagram shows 19804-A and 19804-B. Text listing in MPC only shows 19804, but parts are completely different.)
19834 - Wheel Assembly, Blower Motor
  '68-'72 F100/350 w/ integral A/C C8TZ-19834-A
19837 - Liquid Line, Air Conditioner Dryer to Evaporator
  See Refrigerant Line Replacement and Repair Parts (COMING SOON)

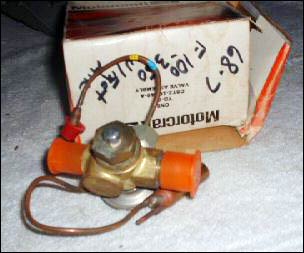

19849 - Valve Assembly, Air Conditioner Evaporator Expansion
'68-'72 F100/350 w/ integral A/C C8TZ-19849-A
19C853 - Bracket Assembly, Air Conditioner Mounting, Front
  '68-'72 F100/350 w/ integral A/C C8TZ-19C853-A R.H.
C8TZ-19C855-A L.H.
  '68-'72 F100/350 w/ integral A/C C8TZ-19C853-B Rear - includes reinforcement
    40927-S8 Screw - 1/4"-20 x 1/4"
    63357-S2 Rivet - 5/32" x 1/2" oval head

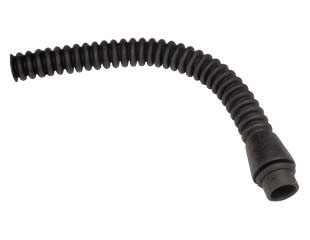

19858 - Hose, Air Conditioner Evaporator Drain
'68-'72 F100/350 w/ integral A/C C8TZ-19858-A
(See NOTE 2)
Rubber
(NOTE 1: also used on '64-'68 Mustang w/A/C)
(NOTE 2: 1980 O.S.I. Catalog says 'Replaced by: Improvise')
19A859 - Link Assembly, Air Conditioner Air Damper Door
  '68-'72 F100/350 w/ integral A/C C8TZ-19A859-A
19860 - Core Assembly, Air Conditioner Evaporator
  '68-'72 F100/350 w/ integral A/C C8TZ-19860-C Replaces C8TZ-19860-A
19C861 - Reinforcement, Air Conditioner Mounting Bracket
  '70-'72 F100/350 w/integral A/C D0HZ-19C861-A
    42141-S8 Screw - No. 10-12 x 3/4"
19A885 - Wiring Assembly, Air Conditioner Thermostat to Clutch
  '68-'72 F100/350 w/ integral A/C C8TZ-19A885-A
19C885 - Plate Assembly, Air Conditioner Evaporator Case Mounting
  '68-'72 F100/350 w/ integral A/C C8TZ-19C885-A
19893 - Register
Also refer to Groups 19A671 & 19C626
  '68-'70 F100/350 w/integral A/C C8TZ-19893-A Wheel type control
  '70-'72 F100/350 w/integral A/C D0TZ-19893-B Knob type control
19A945 - Switch Assembly, Air Conditioner Temperature Control
  '68-'72 F100/350 w/ integral A/C C8TZ-19A945-A
19A950 - Retainer, Air Conditioner Register Mounting
  '68-'72 F100/350 w/integral A/C C8TZ-19A950-A
19980 - Control Assembly, Air Conditioner
  '68-'72 F100/350 w/integral A/C C8TZ-19980-B Replaces C8TZ-19980-A

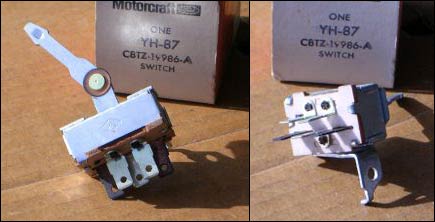

19986 - Switch Assembly, Air Conditioner
'68-'72 F100/350 w/integral A/C C8SZ-19986-B Replaces C8TZ-19986-A
19988 - Cable Assembly, Air Conditioner Temperature
  '68-'72 F100/350 w/integral A/C C8TZ-19988-A Approx. 22-3/4" long
19A995 - Bezel, Air Conditioner Register
  '68-'69 F100/350 w/integral A/C C8TZ-19A995-A
  '70-'72 F100/350 w/integral A/C D0TZ-19A995-B
19A999 - Baffle, Air Conditioner Evaporator Case
  '68-'72 F100/350 w/integral A/C C8TZ-19A999-A
  (NOTE: Exploded-view diagram shows two completely different parts labeled as '19A999', but MPC text only lists the above.)



Symbol (in the text listings or exploded-view diagram) indicates part is not supplied for service due to the following:
