Servicing Your Truck's Air-Conditioning Setup

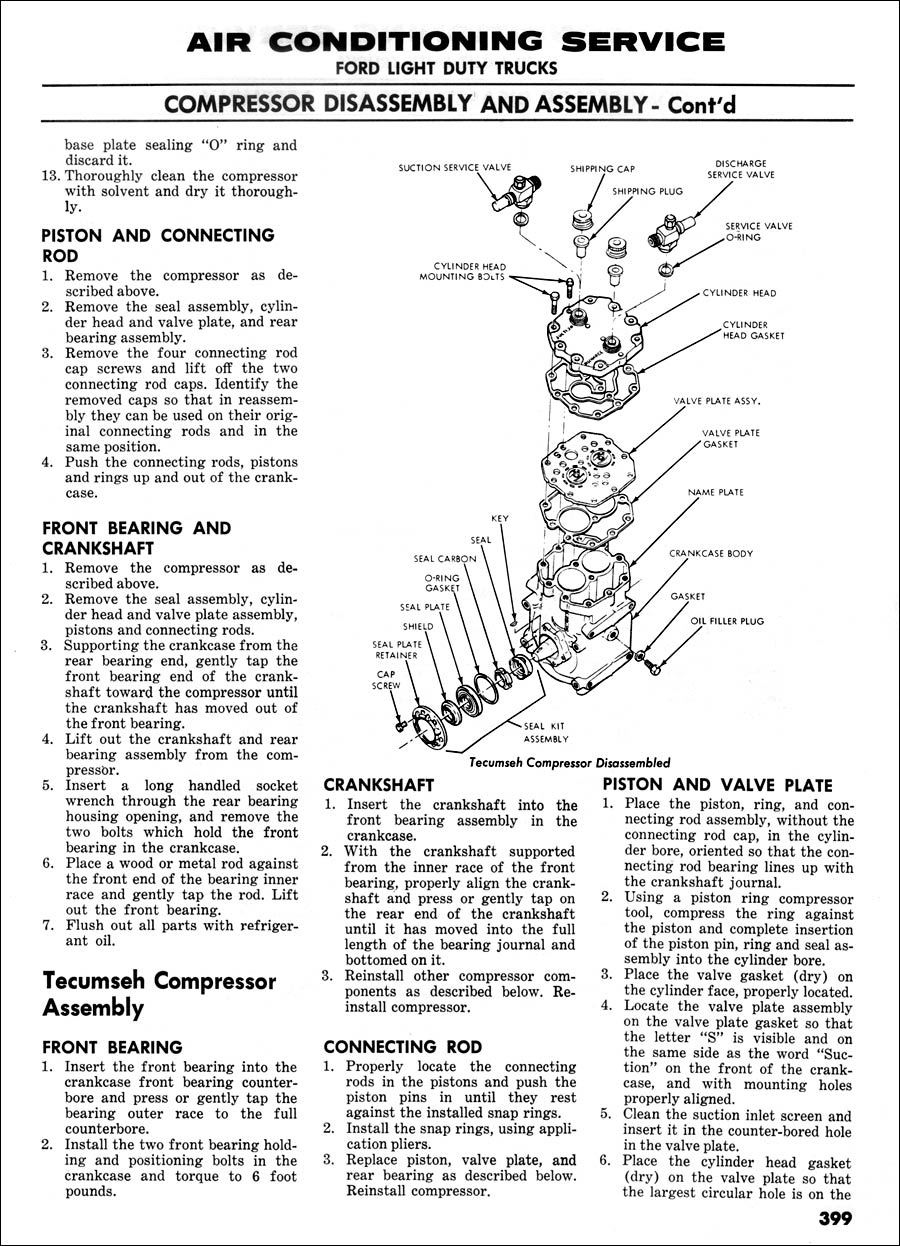

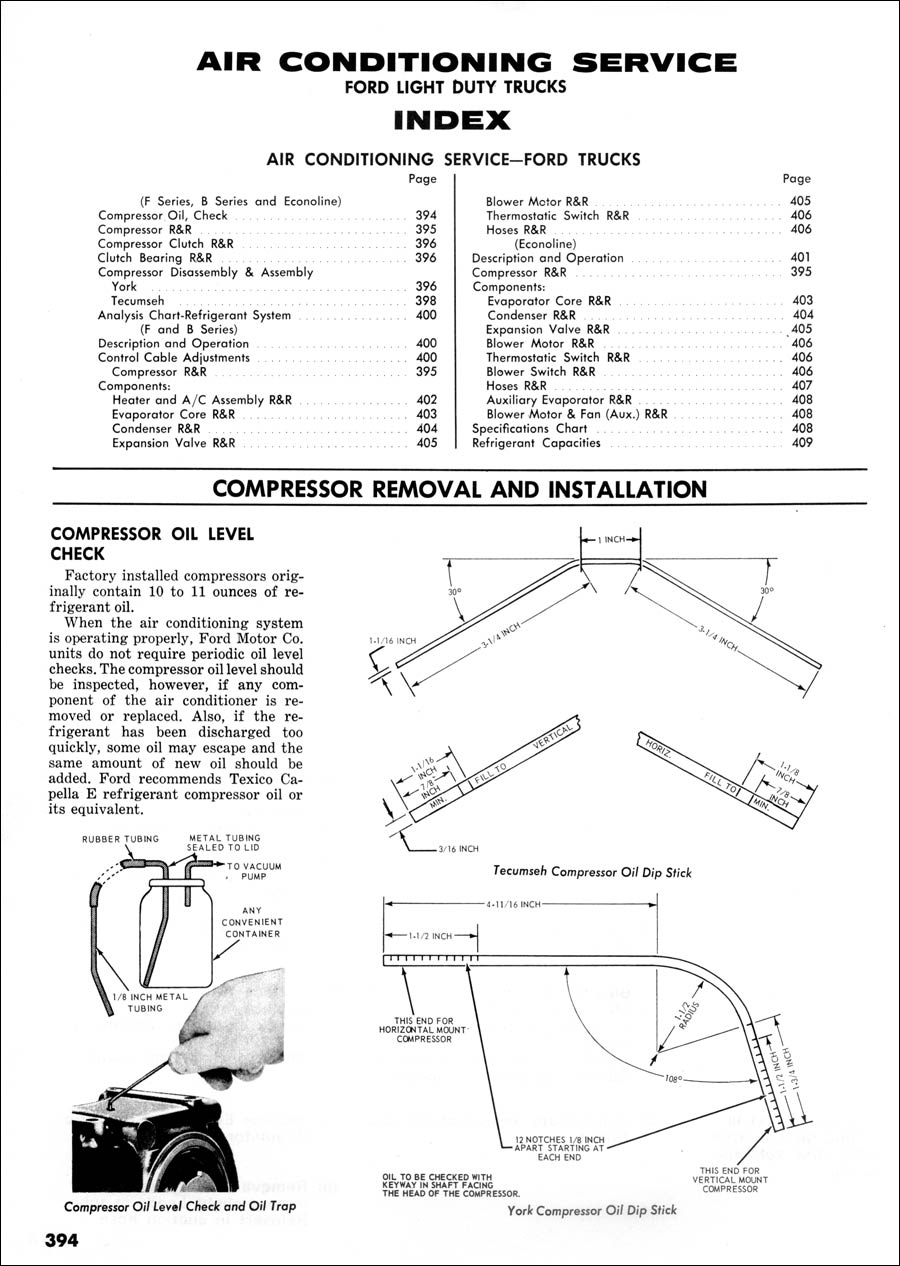

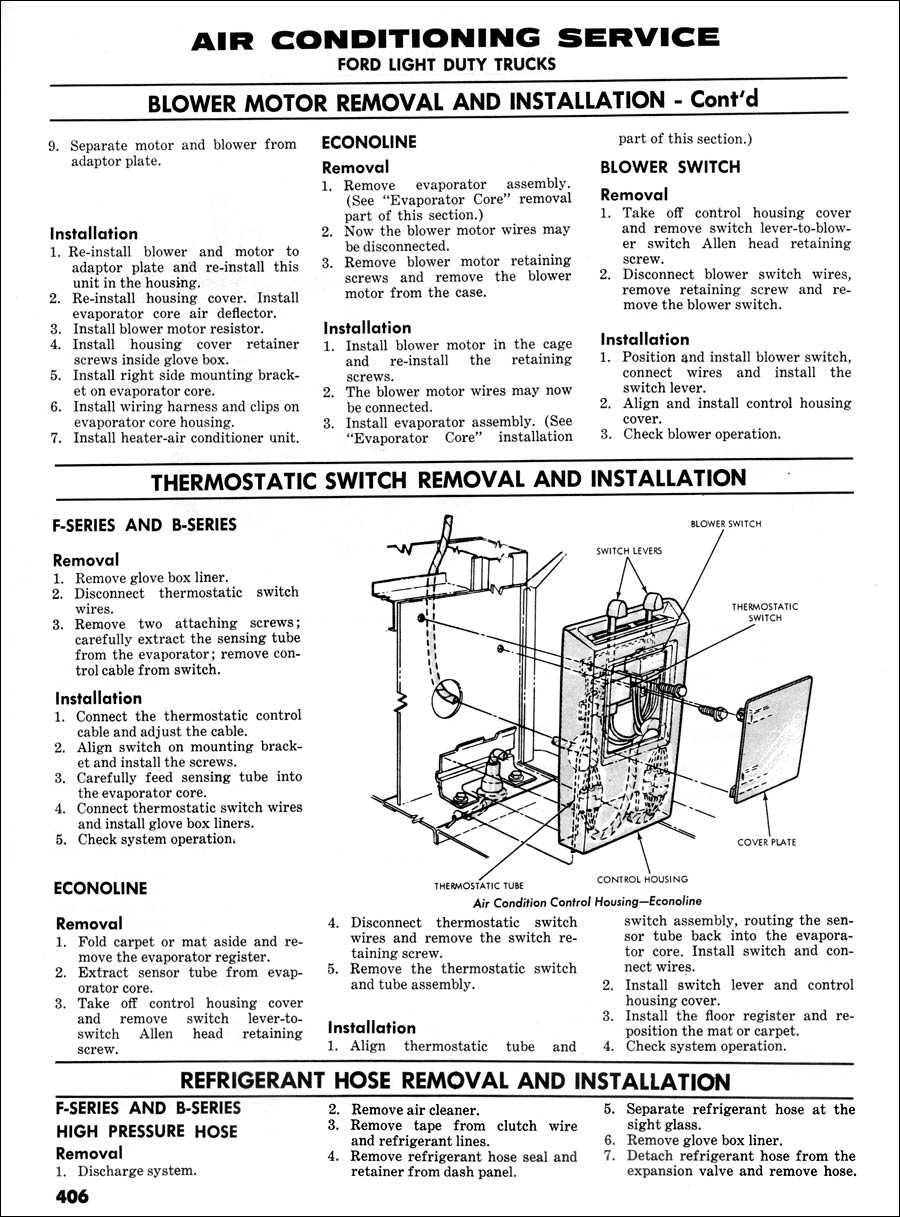

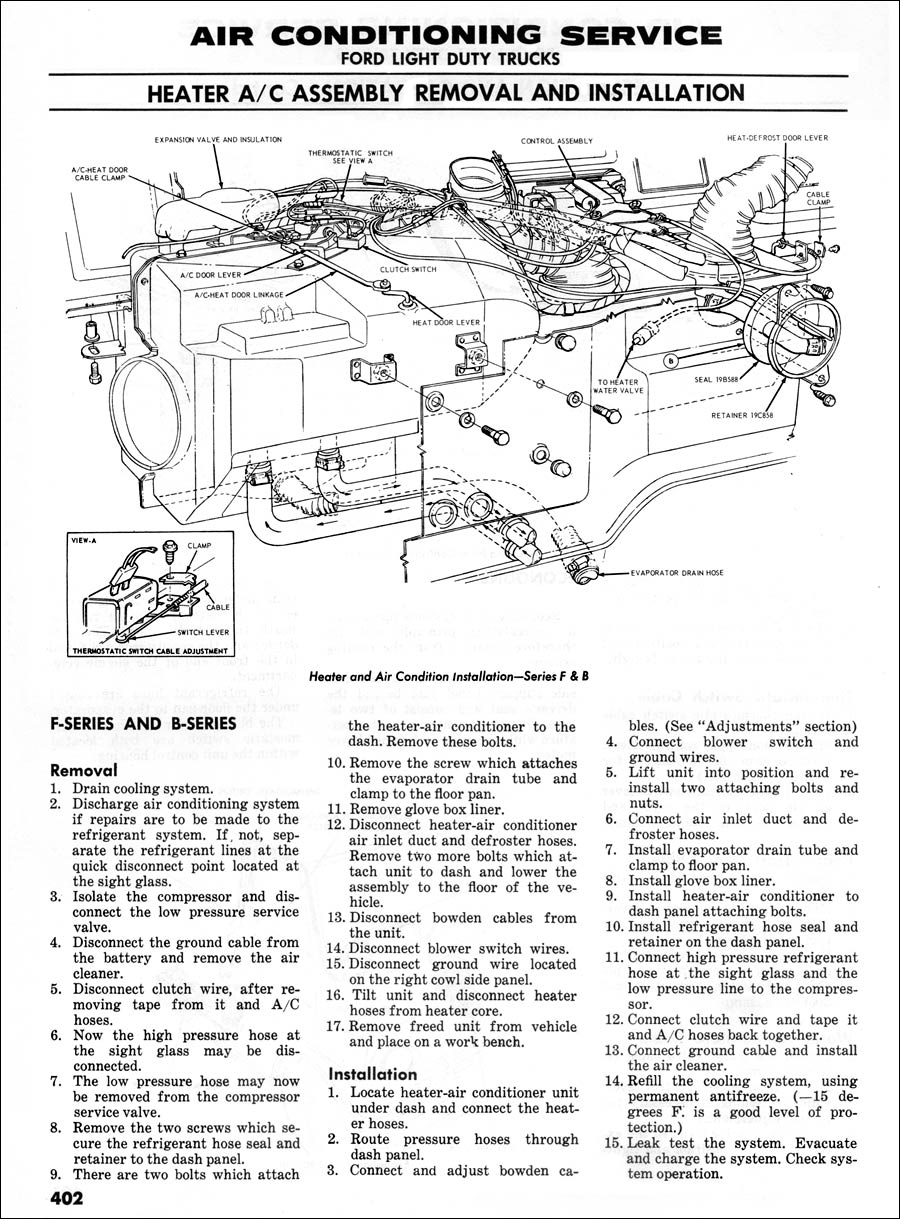

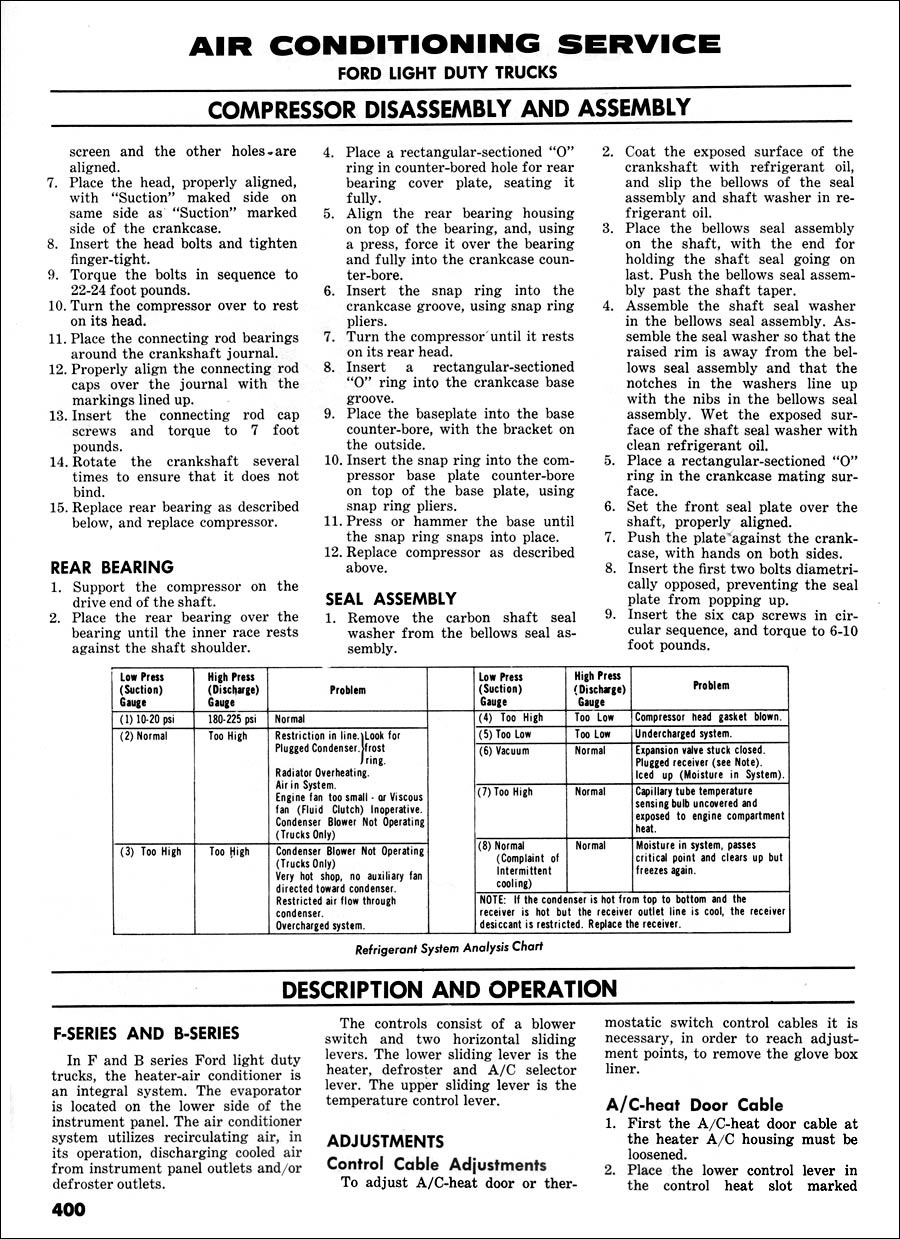

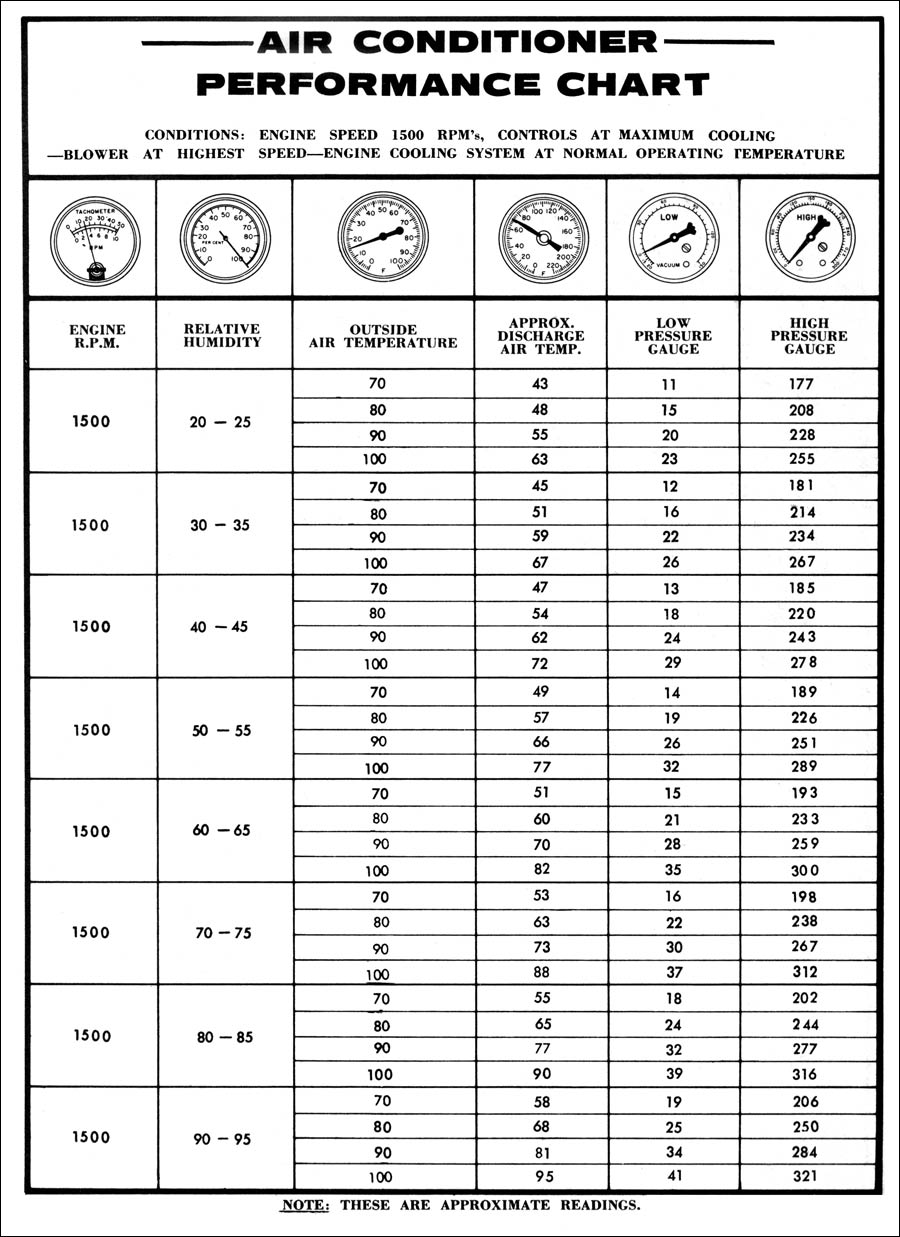

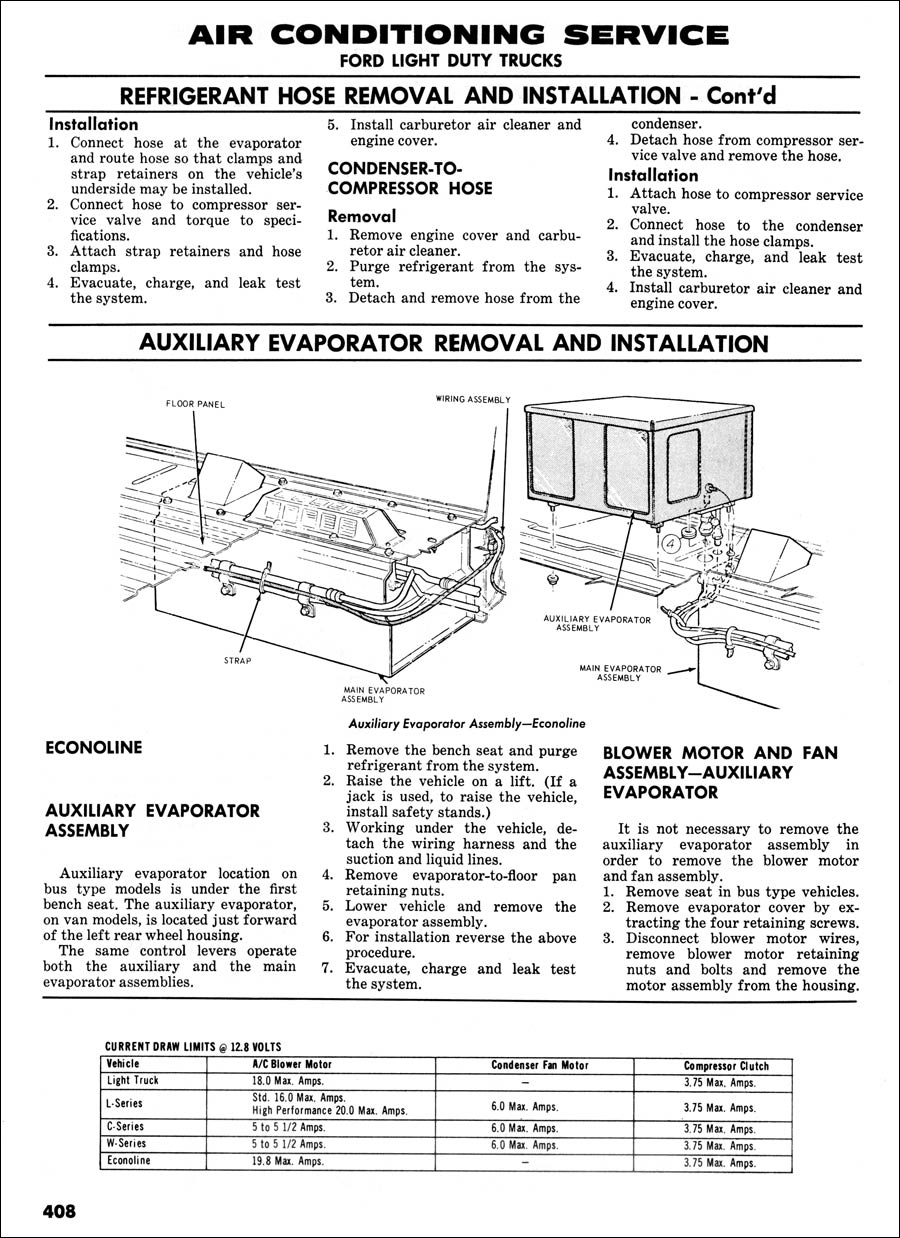

Fig. 01 - Page 394

Fig. 02 - Page 395

Fig. 03 - Page 396

Fig. 04

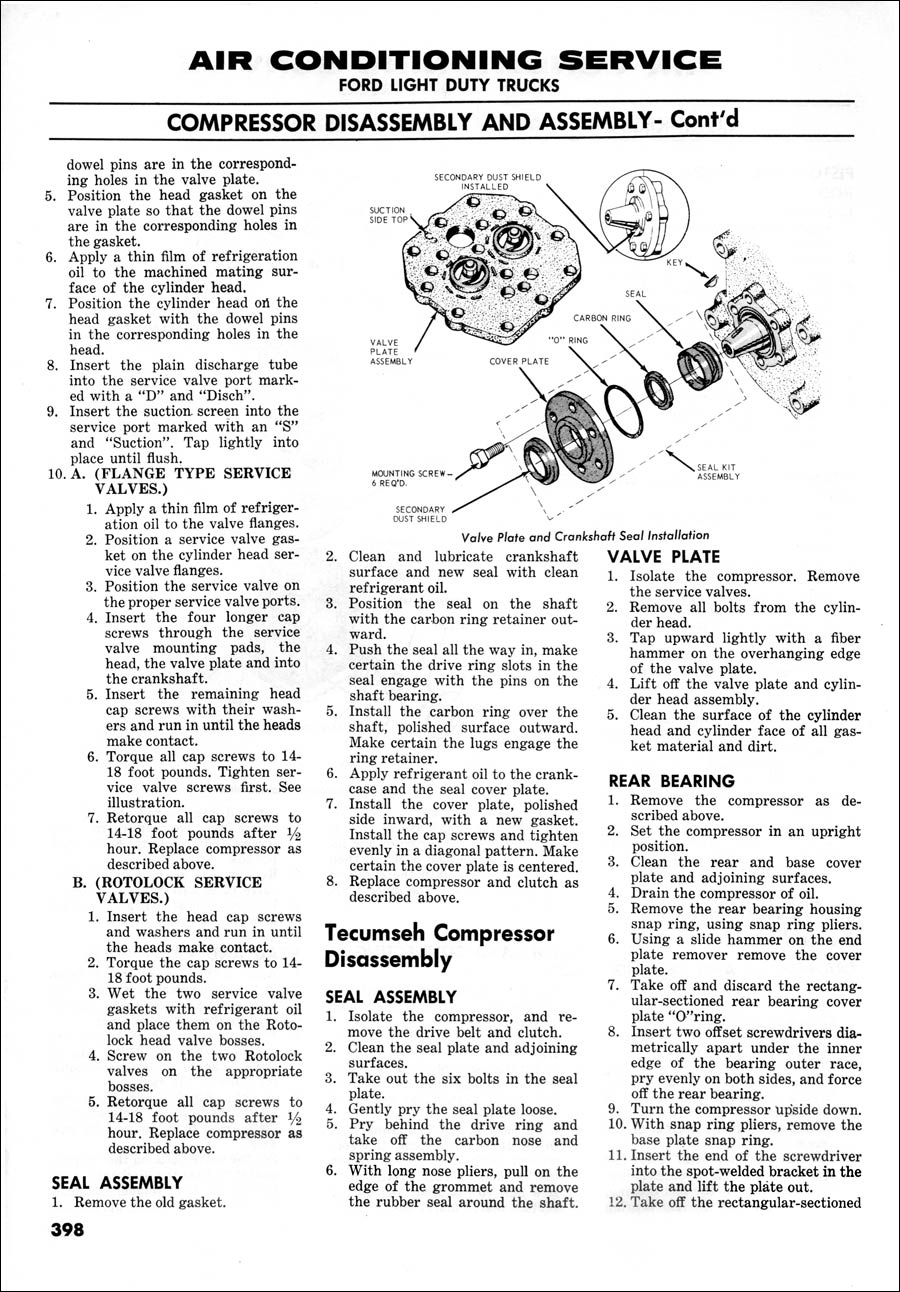

- Page 397






Fig. 05
- Page 398

Fig. 06
- Page 399

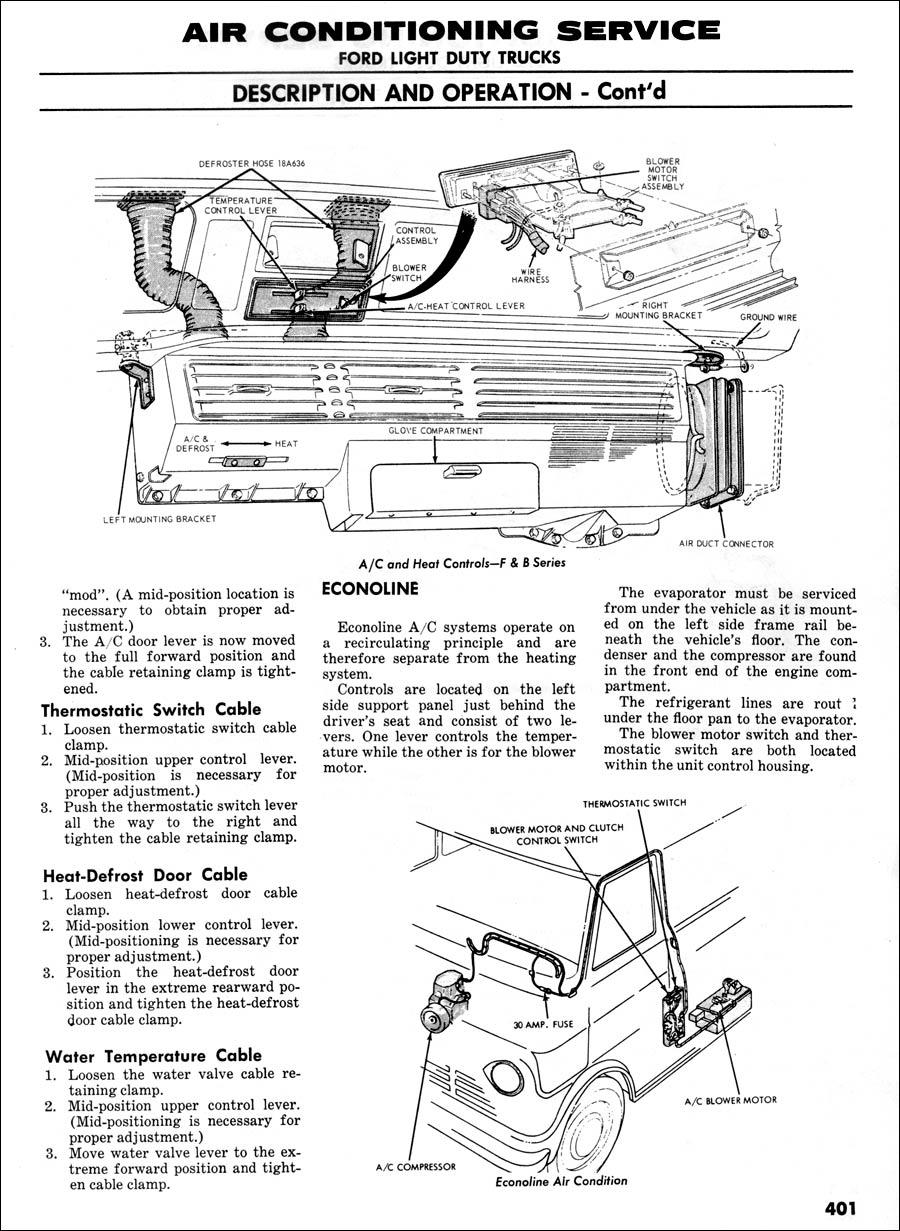

Fig. 07
- Page 400

Fig. 08
- Page 401






Fig. 09
- Page 402

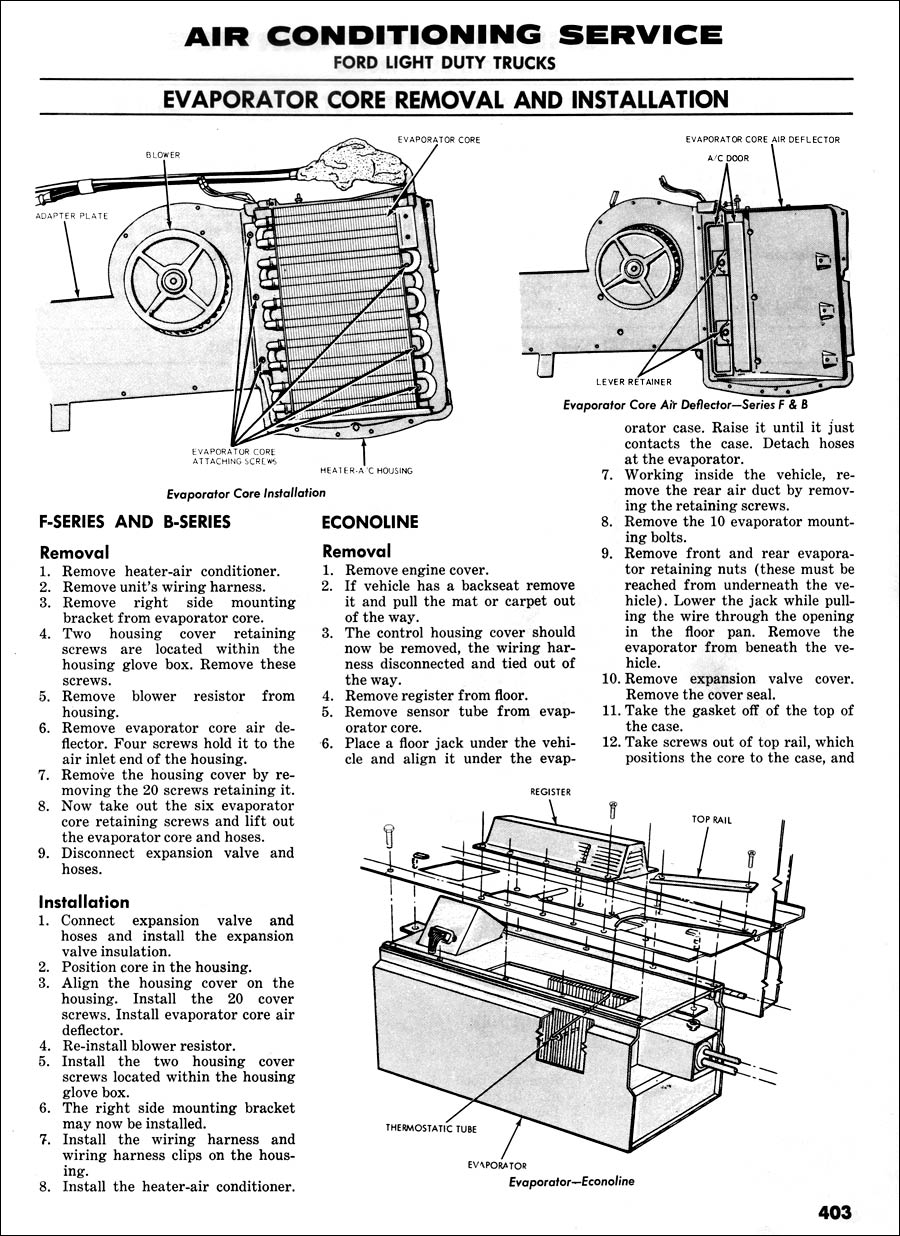

Fig. 10
- Page 403

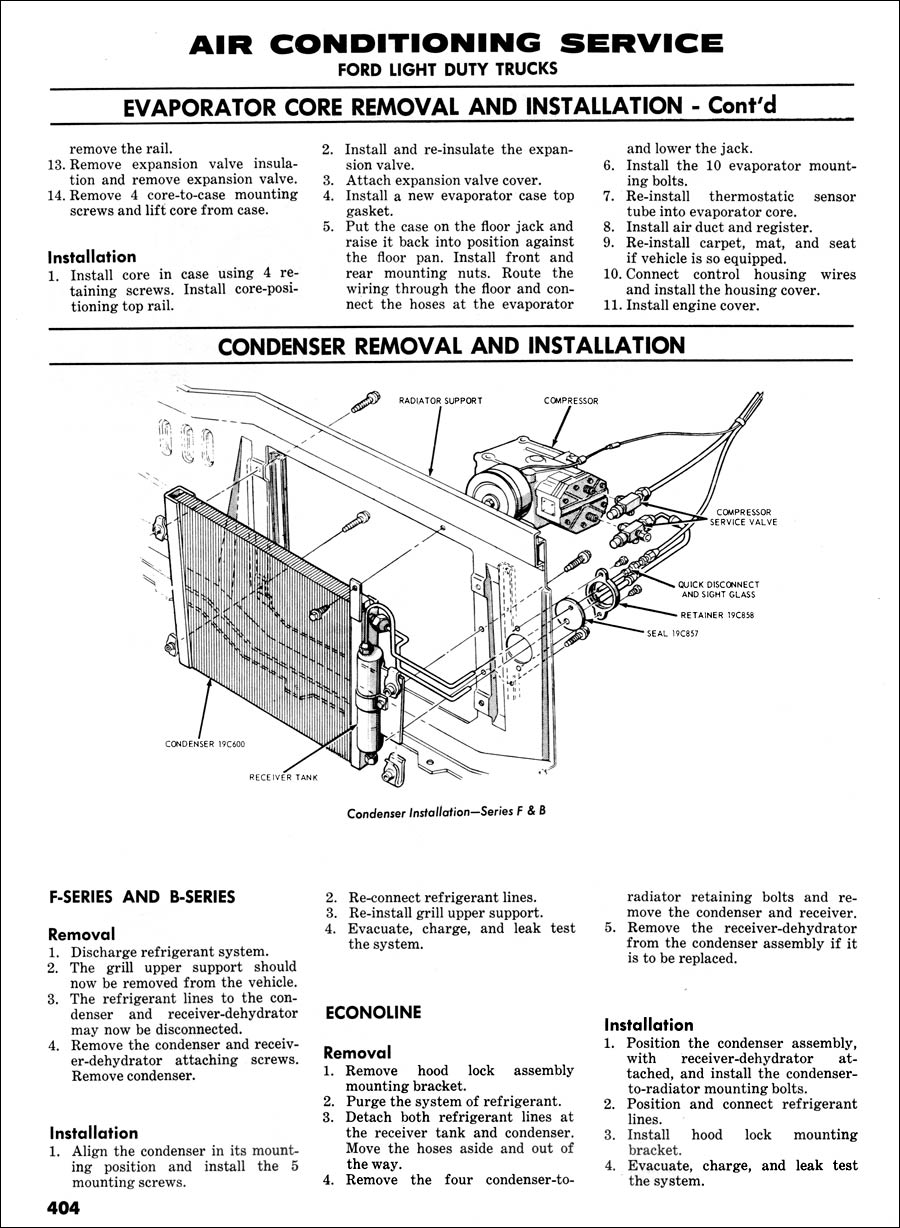

Fig. 11
- Page 404

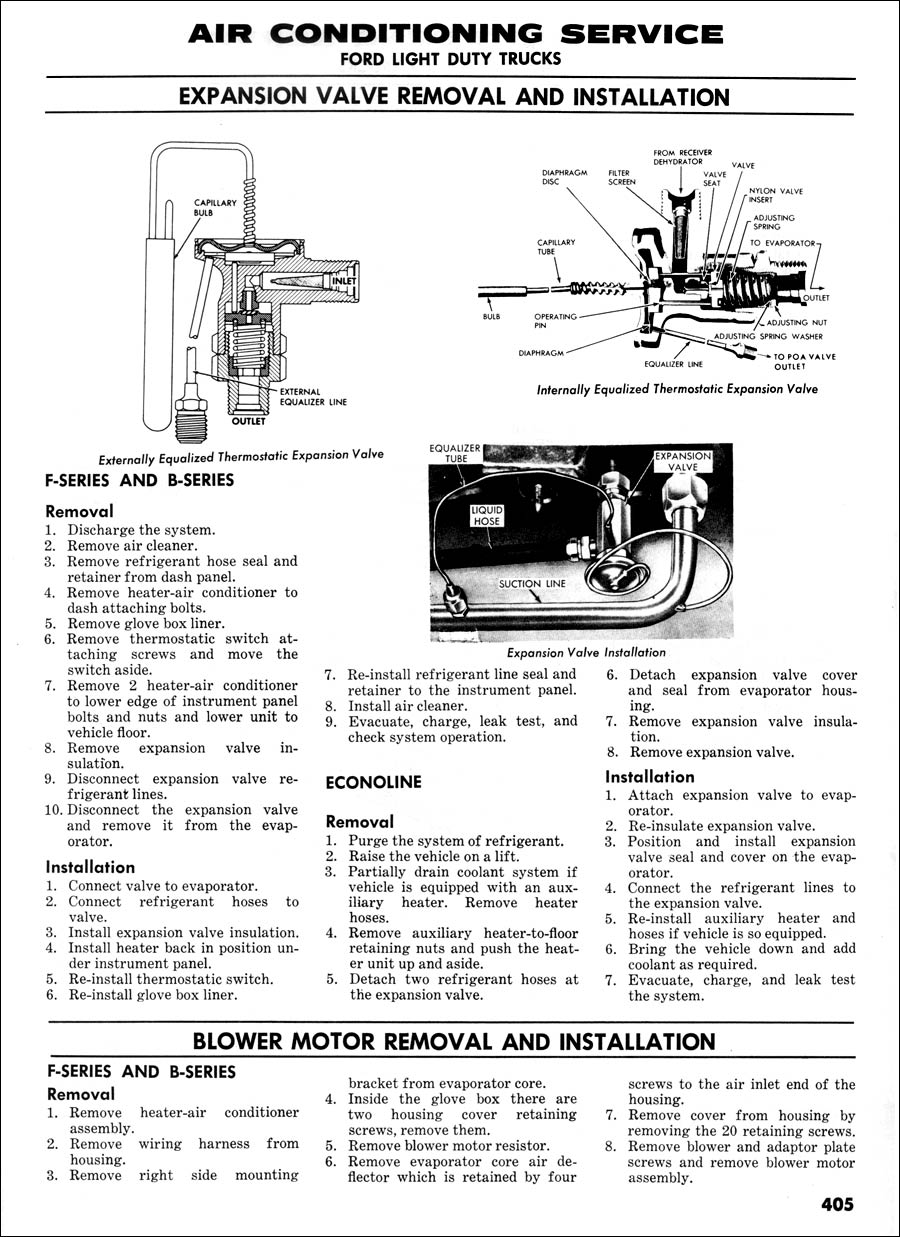

Fig. 12
- Page 405






Fig. 13
- Page 406

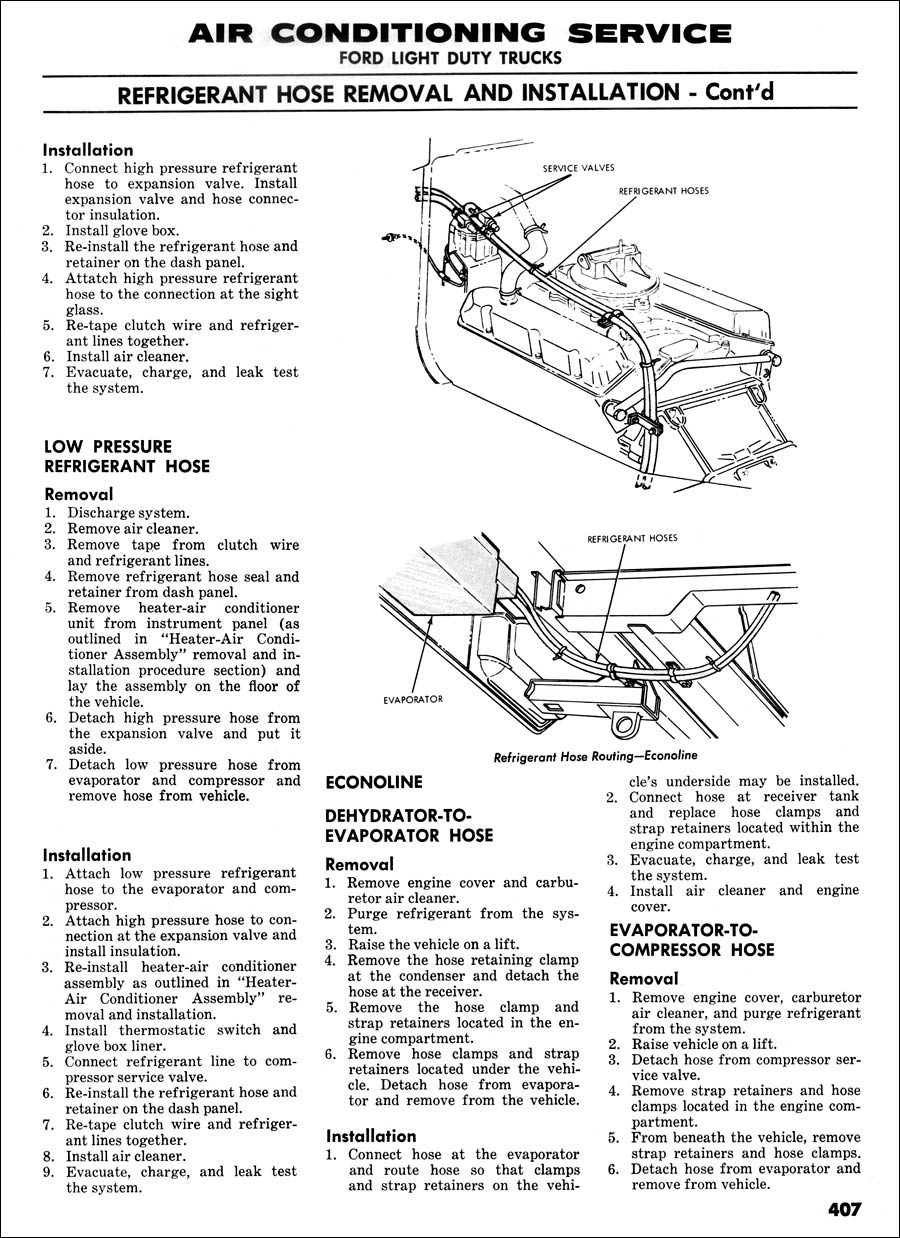

Fig. 14
- Page 407

Fig. 15
- Page 408

Fig. 16
- Page 409




Fig. 17 - Inside Cover

Fig. 18 - Front Cover
