You are here: Home Tech Articles Front / Rear Differentials Ford Rear Axle Identification - Page 01
Back to Technical Index
Ford Rear Axle Assembly Identification - Page 01

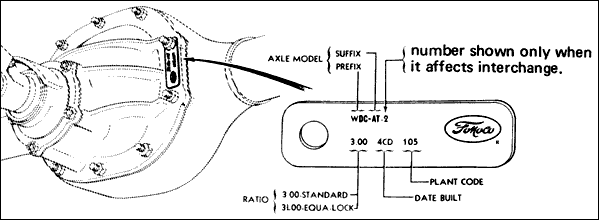

NOTE: Axle tag location and appearance may vary by application.



Code Application Ring Gear And Pinion NL
or
L
Axle
Shaft
Splines
Additional
Information
Ratio Diameter
of RG
WBG-E Ford Truck '63-71 F100 3.70 9 in NL 28 -
WBG-F Ford Truck '63-71 F100 3.89 9 in NL 28 -
WBG-H Ford Truck '63-71 F100 3.89 9 in NL 28 -
WBG-L Ford Truck '63-71 F100 4.11 9 in NL 28 -
WBS-AD Ford Pass '63-64 3.00 8 3/4 in NL - -
WBS-AE Ford Pass '63-64 3.50 8 3/4 in NL - -
WBS-AG Ford Pass 3.00 9 in NL - -
WBS-AK Ford Pass 3.00 8 3/4 in NL - -
WBS-AL Ford Pass 3.50 8 3/4 in NL - -
WBS-AP Ford Pass 3.89 8 3/4 in NL - -
WBS-AR Ford Pass '63 3.25 8 3/4 in NL - -
WBS-AS Ford Pass 3.25 8 3/4 in NL - -
WBS-AT Ford Pass 3.25 9 in NL - -
WBS-AU Ford Pass 3.50 9 in NL - -
WBS-AV Ford Pass '63-64 3.89 8 3/4 in NL - Damper Type Flange
WBS-AY Ford Pass '63-64 3.50 8 3/4 in NL - Damper Type Flange
WBS-AZ Ford Pass 3.50 9 in NL - -
WBS-BA Ford Pass 3.89 9 in NL - -
WBS-BB Ford Pass 3.50 8 3/4 in NL - -
WBS-BC Ford Pass 3.89 8 3/4 in NL - -
WBS-BD Ford Pass 3.89 9 in NL - -
WBS-BG Ford Pass '63-64 3.00 8 3/4 in NL - Damper Type Flange
WBS-BH Ford Pass '63 3.25 8 3/4 in NL - Damper Type Flange
WBS-BJ Ford Pass '63 3.50 8 3/4 in NL - Damper Type Flange
WBS-BL Ford Pass '63-64 3.25 8 3/4 in NL - Damper Type Flange
WBS-BN Ford Pass '64 3.00 8 3/4 in NL - -
WBS-BR Ford Pass '64 3.25 8 3/4 in NL - -
WBS-BU Ford Pass '64 3.25 9 in NL - -
WBS-K Ford Pass '63 3.89 8 3/4 in NL - -
WBT-AA Ford Pass '63 3.00 9 in NL - -
WBT-AF Ford Pass 3.50 9 in NL - -
WBT-AG Ford Pass '63 3.00 8 3/4 in NL - -
WBT-AH Ford Pass '63 3.50 8 3/4 in NL - -
WBT-AP Ford Pass '63 3.89 8 3/4 in NL - -
WBT-AR Ford Pass '63-64 3.25 8 3/4 in NL - -
WBT-AS Ford Pass '63 3.25 8 3/4 in NL - -
WBT-AT Ford Pass '63-64 3.89 8 3/4 in NL - Damper Type Flange
WBT-AU Ford Pass '63-64 3.50 8 3/4 in NL - Damper Type Flange
WBT-AV Ford Pass 3.00 9 in NL4 - -
WBT-AY Ford Pass 3.50 9 in NL4 - -
WBT-AZ Ford Pass 3.89 9 in NL4 - -
WBT-BA Ford Pass 4.11 9 in NL4 - -
WBT-BB Ford Pass 3.50 9 in NL - -
WBT-BC Ford Pass 3.50 8 3/4 in NL - -
WBT-BD Ford Pass 3.89 8 3/4 in NL - -
WBT-BE Ford Pass 3.25 9 in NL - -
WBT-BG Ford Pass 3.89 9 in NL - -
WBT-BM Ford Pass '63-64 3.50 8 3/4 in NL - Damper Type Flange
WBT-BN Ford Pass 3.50 8 3/4 in NL - -
WBT-BP Ford Pass '63-64 3.25 8 3/4 in NL - Damper Type Flange
WBT-BR Ford Pass 3.25 8 3/4 in NL - -
WBT-BS Ford Pass 3.00 8 3/4 in NL - -
WBT-BT Ford Pass '64 3.00 8 3/4 in NL - Damper Type Flange
WBT-BU Ford Pass '63-64 3.00 9 in NL - -
WBT-BV Ford Pass '63-64 3.00 9 in NL - -
WBT-BY Ford Pass '63-64 3.50 9 in NL4 - Damper Type Flange
WBT-BZ Ford Pass '63-64 3.89 9 in NL4 - Damper Type Flange
WBT-CA Ford Pass '63-64 4.11 9 in NL4 - Damper Type Flange
WBT-CB Ford Pass '63-64 3.25 8 3/4 in NL - Damper Type Flange
WBT-CD Ford Pass '64 3.89 8 3/4 in NL - Damper Type Flange
WBT-CE Ford Pass '64 3.00 8 3/4 in NL - -
WBT-CF Ford Pass '64 3.25 8 3/4 in NL - -
WBT-CG Ford Pass '64 3.50 8 3/4 in NL - -
WBT-CK Ford Pass '64 3.25 9 in NL - -
WBT-CL Ford Pass '64 3.50 9 in NL - -
WBT-N Ford Pass '63 3.89 8 3/4 in NL - -
WBT-W Ford Pass '63-64 3.00 8 3/4 in NL - -
WBT-X Ford Pass '63-64 3.50 8 3/4 in NL - -
WBT-Y Ford Pass 3.50 8 3/4 in NL - -
WBT-Z Ford Pass 4.11 8 3/4 in NL - -
WBU-AA Ford Pass 3.89 8 3/4 in L - -
WBU-AB Ford Pass 3.50 8 3/4 in L - -
WBU-L Ford Pass 3.89 8 3/4 in L - -
WBU-R Ford Pass 3.00 8 3/4 in L - -
WBU-S Ford Pass 3.50 8 3/4 in L - -
WBU-T Ford Pass 3.89 8 3/4 in L - -
WBU-Z Ford Pass 3.25 8 3/4 in L - -
WBV-AA Ford Pass '63 3.25 8 3/4 in L - -
WBV-AB Ford Pass '63-64 3.89 8 3/4 in L - Damper Type Flange
WBV-AC Ford Pass '63-64 3.50 8 3/4 in L - Damper Type Flange
WBV-AE Ford Pass 3.25 9 in L - -
WBV-AF Ford Pass 3.50 9 in L - -
WBV-AG Ford Pass 3.89 9 in L - -
WBV-AH Ford Pass 3.00 9 in L4 - -
WBV-AJ Ford Pass 3.50 9 in L4 - -
WBV-AK Ford Pass 3.89 9 in L4 - -
WBV-AL Ford Pass 4.11 9 in L4 - -
WBV-AP Ford Pass '63-64 3.50 8 3/4 in L - Damper Type Flange
WBV-AR Ford Pass '63 3.25 8 3/4 in L - Damper Type Flange
WBV-AS Ford Pass '63-64 3.89 8 3/4 in L - Damper Type Flange
WBV-AT Ford Pass '64 3.00 8 3/4 in L - Damper Type Flange
WBV-AV Ford Pass '63-64 3.00 9 in L - -
WBV-AZ Ford Pass '63 3.50 9 in L4 - Damper Type Flange
WBV-BA Ford Pass '63 3.89 9 in L4 - Damper Type Flange
WBV-BB Ford Pass '63 4.11 9 in L4 - Damper Type Flange
WBV-BC Ford Pass '63 3.25 9 in L - -
WBV-BD Ford Pass '64 3.00 8 3/4 in NL - -
WBV-BE Ford Pass '64 3.50 8 3/4 in L - -
WBV-BG Ford Pass '64 3.50 9 in L - -
WBV-H Ford Pass '63 3.89 8 3/4 in L - -
WBV-N Ford Pass '63-64 3.00 8 3/4 in L - -
WBV-P Ford Pass '63-64 3.50 8 3/4 in L - -
WBW-A Falcon '63 3.10 6 3/4 in NL - Non-Removable Carrier
WBW-B Falcon '63 3.50 6 3/4 in NL - Non-Removable Carrier
WBW-K Falcon '63 3.20 7 1/4 in NL - Non-Removable Carrier
WBW-L Falcon '63 3.50 7 1/4 in NL - Non-Removable Carrier
WBY-A Falcon '63 3.50 7 in NL - Non-Removable Carrier
WBY-G Falcon '63 4.00 7 in NL - Non-Removable Carrier
WBY-H Falcon '63 3.50 7 1/4 in NL - Non-Removable Carrier
WBY-J Falcon '63 3.20 7 1/4 in NL - Non-Removable Carrier
WBY-K Falcon '63 3.10 6 3/4 in NL - Non-Removable Carrier
WBY-L Falcon '63 3.50 6 3/4 in NL - Non-Removable Carrier
WCC-A Ford Tr. '63-67 Econ. 3.50 7 1/4 in NL 24 Non-Removable Carrier
WCC-C Ford Tr. '63-67 Econ. 4.00 7 1/4 in NL 24 Non-Removable Carrier
WCC-D Ford Tr. '63-67 Econ. 3.50 7 1/4 in NL 24 Non-Removable Carrier
WCC-E Ford Tr. '63-67 Econ. 4.00 7 1/4 in NL 24 Non-Removable Carrier
WCC-H Ford Tr. '63-67 Econ. 3.50 7 1/4 in L 24 Non-Removable Carrier
WCC-J Ford Tr. '63-67 Econ. 4.00 7 1/4 in L 24 Non-Removable Carrier
WCC-K Ford Tr. '63-67 Econ. 3.20 7 1/4 in NL 24 Non-Removable Carrier
WCC-L Ford Tr. '63-67 Econ. 3.20 7 1/4 in NL 24 Non-Removable Carrier
WCC-M Ford Tr. '63-67 Econ. 3.50 7 1/4 in NL 24 Non-Removable Carrier
WCC-N Ford Tr. '63-67 Econ. 4.00 7 1/4 in NL 24 Non-Removable Carrier
WCD-C Thunderbird '63-64 3.00 9 in NL - -
WCD-D Thunderbird 3.00 9 in NL4 - -
WCD-E Thunderbird '65 3.00 9 in NL 28 -
WCD-F Thunderbird '65 3.50 9 in NL 28 -
WCD-G Thunderbird '65 3.25 9 in NL4 28 -
WCD-H Thunderbird '66 3.00 9 in NL 28 -
WCD-J Thunderbird '66 3.00 9 in L 28 -
WCL-A Fairlane '63 3.00 7 3/4 in NL - -
WCL-B Fairlane '63 3.50 7 3/4 in NL - -
WCL-C Fairlane '63 3.25 7 3/4 in NL - -
WCL-D Fairlane '63 3.80 8 in NL - -
WCL-E Fairlane '63 3.25 7 3/4 in NL - Damper Type Flange
WCL-F Fairlane '63 3.50 7 3/4 in NL - Damper Type Flange
WCL-G Fairlane '63 3.80 8 in NL - Damper Type Flange
WCL-H Fairlane '64-65 3.00 8 in NL 28 -
WCL-J Fairlane '64-65 3.50 8 in NL 28 -
WCL-K Fairlane '64-65 3.25 8 in NL 28 -
WCL-P Fairlane '64 3.80 8 in NL - -
WCL-N Fairlane '64-65 2.80 7 3/4 in NL 28 -
WCN-A Ford Pass '63 3.00 9 in NL4 - 1/2 in Ring Gear Bolts
WCN-B Ford Pass '63-64 3.50 9 in NL4 - 1/2 in Ring Gear Bolts
WCN-C Ford Pass '63-64 4.11 9 in NL4 - 1/2 in Ring Gear Bolts
WCN-D Ford Pass '63 3.00 8 3/4 in NL - -
WCN-E Ford Pass '63-64 3.50 8 3/4 in NL - -
WCN-G Ford Pass '63 4.11 8 3/4 in NL - -
WCN-H Ford Pass '63 3.89 8 3/4 in NL - -
WCN-J Ford Pass '63 3.25 8 3/4 in NL - -
WCN-K Ford Pass '63-64 3.50 8 3/4 in NL - Damper Type Flange
WCN-L Ford Pass '63-64 3.89 8 3/4 in NL - Damper Type Flange

INDEX

Page 01 - WBG-E thru WCN-L   Page 10 - C001-A thru D070-A and
S107G thru
S156H
Page 02 - WCN-M  thru WDC-Z   Page 11 - S157B thru S335C
Page 03 - WDD-B thru WDM-DR   Page 12 - S336A thru S405-E
Page 04 - WDM-E thru WDX-R   Page 13 - S406-B thru S668H
Page 05 - WDY-A thru WEG-S   Page 14 - S672A thru S829F
Page 06 - WEM-A thru WFB-M   Page 15 - S832E thru SPM747-C
Page 07 - WFC-A thru WFF-C   Page 16 - V012-A thru V052-B
Page 08 - WFG-A thru WFZ-J1   Page 17 - V106A thru V497-B
Page 09 - WGA-A thru WGZ-E
